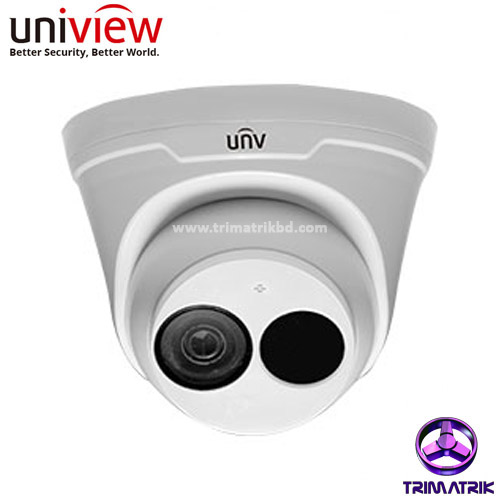

Uniview IPC3612LR3-PF40-C 2MP Fixed Dome Network Camera

Uniview IPC3612LR3-PF40-C 2MP Fixed Dome Network Camera   IPC3612LR3-PF28-C IPC3612LR3-PF40-C Camera Sensor 1/2.7″, progressive scan,2megapixel, CMOS Lens [email protected] [email protected] Angle of view(H) 112.7° 86.5° Shutter Auto/Manual, 1/6~1/100000 s Minimum Illumination Colour: 0.01 Lux (F1.8, AGC ON)0 Lux with IR Day/Night IR-cut filter with auto switch (ICR) Digital noise reduction 2D/3D DNR S/N >52dB IR Range Up to 30m (98 ft) IR range Defog Digital Defog WDR DWDR Video Video Compression Ultra 265,H.265, H.264, MJPEG H.264 code profile Baseline profile, Main Profile, High Profile Frame Rate Main Stream: 2MP (1920×1080): Max. 25 fps;Sub Stream:720P (1280×720): Max. 25 fps;Third Stream:D1(720×576) : Max. 25fps HLC Supported BLC Supported OSD Up to 8 OSDs Privacy Mask Up to 8 areas ROI Up to 8 areas Motion Detection Up to 4 areas Network Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP Compatible Integration ONVIF(Profile S), API Interface Network 1 RJ45 10M/100M Base-TX Ethernet General Power 12 V DC±25%, PoE (IEEE802.3 af) Power consumption: Max 5.0W Dimensions (Ø x H) Φ118 x 96 mm (Ø4.6” x 3.8”) Weight 0.2 kg (0.44lb) Working Environment -20°C ~ 50°C (-4°F ~ 122°F), Humidity :10%~95% RH(non-condensing)
