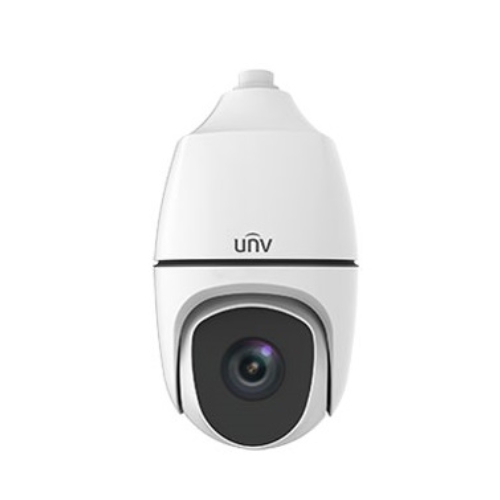

Uniview IPC6858SR-X22 4K Ultra-HD Network IR PTZ Dome Camera

Uniview IPC6858SR-X22 4K Ultra-HD Network IR PTZ Dome Camera   IPC6858SR-X22 Camera   Sensor 1/1.7″, 12.0 megapixel, progressive scan, CMOS Lens 6.5 ~ 143mm Digital Zoom 16 Optical Zoom 22 DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m) 6.5 158.1 63.2 31.6 15.8 143 3478.4 1391.4 695.7 347.8 Angle of View (H) 56.69° ~ 3.19° Angle of View (V) 34.2° ~ 1.6° Angle of View (O) 69.7° ~ 3.7° Shutter Auto/Manual, shutter time: 1 ~ 1/100000s Minimum Illumination Colour: 0.01Lux (F1.5,AGC ON)0Lux with IR Iris Auto/Manual, F1.5 ~ F3.4 Day/Night IR-cut filter with auto switch (ICR) Digital noise reduction 2D/3D DNR S/N >55dB IR Range UP to 250m (820ft) Defog Digital Defog WDR DWDR Video Video Compression Ultra 265, H.265, H.264, MJPEG Frame Rate Main Stream: 12MP (4000*3000), Max 20fps; 8MP (3840*2160), Max 25fps; 2MP (1920*1080), 30fps;Sub Stream: 2MP (1920*1080), Max 30fps;Third Stream: D1 (720*576), Max 30fps HLC Supported BLC Supported EIS Supported ROI Up to 8 areas OSD Up to 8 OSDs Privacy Mask Up to 24 areas Motion Detection Up to 4 areas Smart General Function Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication Audio Audio Compression G.711 Two-way Audio Supported Suppression Supported Sampling Rate 8KHZ Storage Edge Storage Micro SD, up to 256GB Network Storage ANR Network Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x，SNMP, QoS Compatible Integration ONVIF (Profile S, Profile G, Profile T), API Pan & Tilt Pan Range 360° Pan Speed 0.1°/s ~ 240°/s Preset speed: 300°/s Tilt Range -15° ~ 90° (auto reverse) Tilt Speed 0.1° ~ 160°/s Preset speed: 240°/s Number of Presets 1024 Patrol Preset patrol, route patrol, recorded patrol Home Position Supported Interface Audio I/O Audio cable 1 Input: impedance 35kΩ; amplitude 2V [p-p] 1 Output: impedance 600Ω; amplitude 2V [p-p] Alarm I/O 2/1 Serial Port 1 RS485 Network 1 RJ45 10M/100M Base-TX Ethernet Video Output 1 BNC, impedance 75Ω; amplitude 1V [p-p] General Power AC 24V±25% (Default), DC 24V±25% Power consumption: 16 ~ 56W Dimensions (Ø x H) Φ270 × 496.7mm (Φ10.6” x 19.6”) Weight 9.69kg (21.4lb) Working Environment -40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing) Ingress Protection IP66
