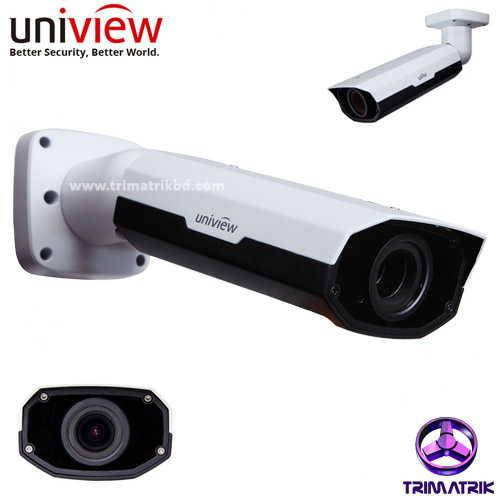

Uniview IPC242E-IR(-Z)-IN 2MP (Motorized)VF Network IR Bullet Camera

Uniview IPC242E-IR(-Z)-IN 2MP (Motorized)VF Network IR Bullet Camera IPC242E-IR-IN IPC242E-IR-Z-IN Camera Sensor 1/2.8″, 2 megapixel, progressive scan, CMOS Shutter Auto/Manual, 1/6~1/8000 s Lens 3 ~ 10.5 mm, F1.4 Zoom/Focus Manual Motor drive Angle of View (H) 102.4° (wide)~ 27.4° (tele) Min. Illumination Color: 0.03 Lux (F1.4, 50IRE)Black & White: 0.01Lux (F1.4, 50IRE) Day/Night IR-cut filter with auto switch (ICR) S/N >52dB IR Smart-IR, up to 30m (98 ft) IR range Video Max. Resolution 1920 × 1080 Video Compression H.264,MJPEG Frame Rate 1080P (1920*1080) 30 fps; 720P (1280*720) 30 fps; D1 (720*576) 25 fps 9:16 Corridor Mode Supported ROI(Region of Interest) Supported Video Streaming Triple OSD Up to 8 OSDs Privacy Mask Up to 8 areas Audio Audio Compression G.711 Two-way audio Supported Storage Edge Storage Micro SD, up to 64 GB Network Protocols L2TP,IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP,PPPoE,RTP,RTSP,Qos,NTP,FTP,HTTP,SNMP,SIP Compatible Integration ONVIF, IMOS,API Interface Audio I/O 3.5 mm audio interface Input: impedance 35 kΩ; amplitude 2 V [p-p] Output: impedance 600 Ω; amplitude 2 V [p-p] Alarm I/O 2 / 1 Serial Port 1 RS485 Network 10M/100M Base-TX Ethernet Video Output 1 BNC, impedance 75 Ω; amplitude 1 V [p-p] General Power 12 V DC, 24 V AC or PoE (IEEE802.3 af) Power consumption: 4.5 W (11W with IR on) Dimensions (L × W × H) 282.6 ×90 ×86 mm (11.1” × 3.5” × 3.4”) Weight 1.2 kg (2.6 lb) Working Environment –40°C ~ 60°C (-40°F ~ 140°F), Humidity ≤ 90% RH(non-condensing) Ingress Protection IP66
